Carbon Steel in Cooling Systems: Types, Properties and Corrosion Control

Walk through any plant room in Southeast Asia and most of what you see is carbon steel: condenser water pipes, cooling-tower basins, pump casings, heat-exchanger shells and tube sheets. It is strong, easy to weld and inexpensive, which is why engineers specify it everywhere. Its weakness is just as well known: in contact with water and oxygen, carbon steel corrodes.

This guide explains what carbon steel is, how the main grades differ, and what actually causes it to corrode in cooling-water systems, so you can protect your equipment and avoid expensive failures.

What Is Carbon Steel?

Carbon steel is an alloy of iron and carbon, typically with between about 0.05% and 2% carbon by weight. Unlike stainless or alloy steels, it contains no significant amounts of chromium, nickel or molybdenum. Small amounts of manganese and silicon are normal, but they do not change its basic character.

The carbon content is what matters most: more carbon makes steel harder and stronger, but also more brittle and harder to weld.

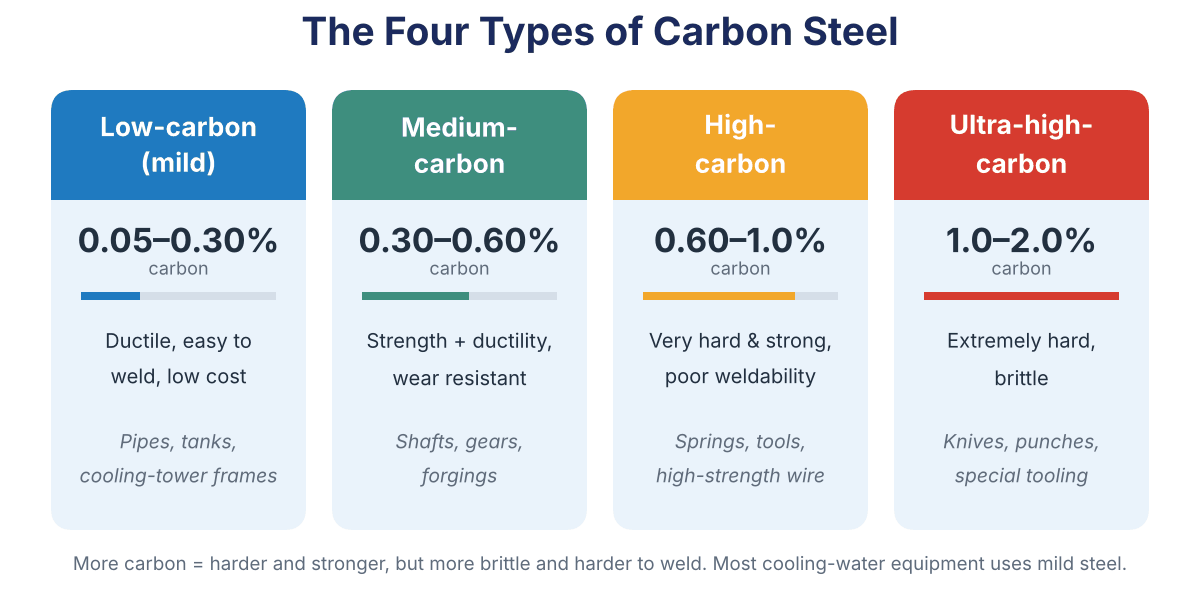

The Four Main Types of Carbon Steel

In short: low-carbon (mild) steel (0.05–0.30% carbon) is ductile, weldable and cheap; medium-carbon (0.30–0.60%) balances strength and ductility; high-carbon (0.60–1.0%) is very hard but difficult to weld; and ultra-high-carbon (1.0–2.0%) is extremely hard and brittle.

In water-treatment and HVAC systems, almost all carbon steel is mild (low-carbon) steel, chosen because it is affordable and easy to fabricate and weld on site.

How Heat Treatment Changes Carbon Steel

Medium- and high-carbon steels can be heat-treated to tailor their properties:

• Annealing: slow cooling from high temperature makes the steel softer and easier to form.
• Normalizing: air cooling refines the grain structure for more uniform strength.
• Quenching: rapid cooling in water or oil makes the steel very hard but brittle.
• Tempering: reheating after quenching restores some toughness at the cost of a little hardness.
• Case hardening: hardens only the surface, leaving a tough core.

None of these treatments improves corrosion resistance. Whatever the grade or heat treatment, carbon steel still needs protection from water.

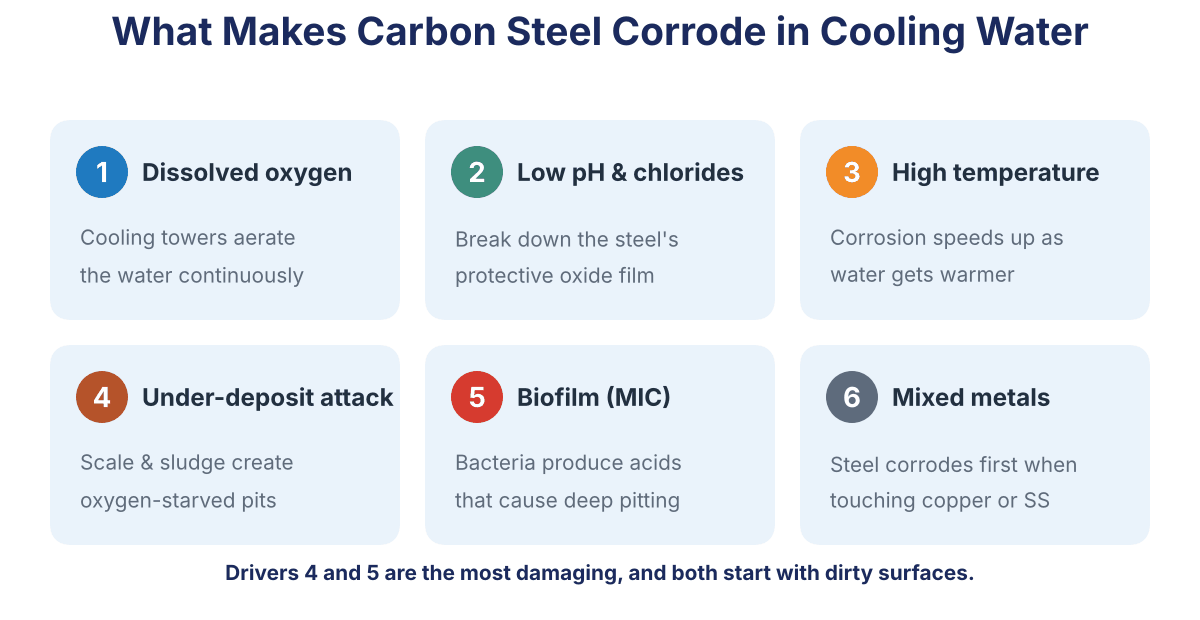

Why Carbon Steel Corrodes in Cooling-Water Systems

Corrosion is an electrochemical reaction: iron gives up electrons and combines with oxygen and water to form iron oxide (rust). Open recirculating cooling systems create almost ideal conditions for it, because the water is warm, saturated with oxygen and constantly concentrating dissolved salts.

The main corrosion drivers are:

• Dissolved oxygen: cooling towers aerate the water continuously.
• Low pH or high chlorides and sulfates: these break down protective oxide films.
• High temperature: corrosion rates rise as water temperature increases.
• Under-deposit corrosion: scale, sludge and silt create oxygen-starved pockets where pitting attacks the metal beneath.
• Microbiologically influenced corrosion (MIC): bacteria in biofilm, especially sulfate-reducing bacteria, produce acids and can cause deep pits.
• Galvanic corrosion: where carbon steel touches copper or stainless steel in the same water, the carbon steel corrodes preferentially.

The Hidden Link Between Scale, Biofilm and Corrosion

Scale and biofilm are often treated as separate problems, but on carbon steel they work together. Deposits shield the metal from the bulk water, so corrosion inhibitors cannot reach it, and the oxygen-starved zone beneath becomes a local corrosion cell. The result is pitting that can perforate a pipe or tube long before general wall loss looks serious.

Keeping surfaces clean is one of the most effective corrosion-control measures you can take.

How to Protect Carbon Steel in Cooling Systems

1. Keep surfaces free of scale and biofilm. Clean metal can form a stable protective film; fouled metal cannot. Non-chemical Electrolysis Scale Treatment (EST) continuously removes hardness and controls biofilm, removing the deposits that drive under-deposit corrosion and MIC.
2. Control water chemistry. Keep pH, conductivity, chlorides and cycles of concentration within design limits through proper blowdown.

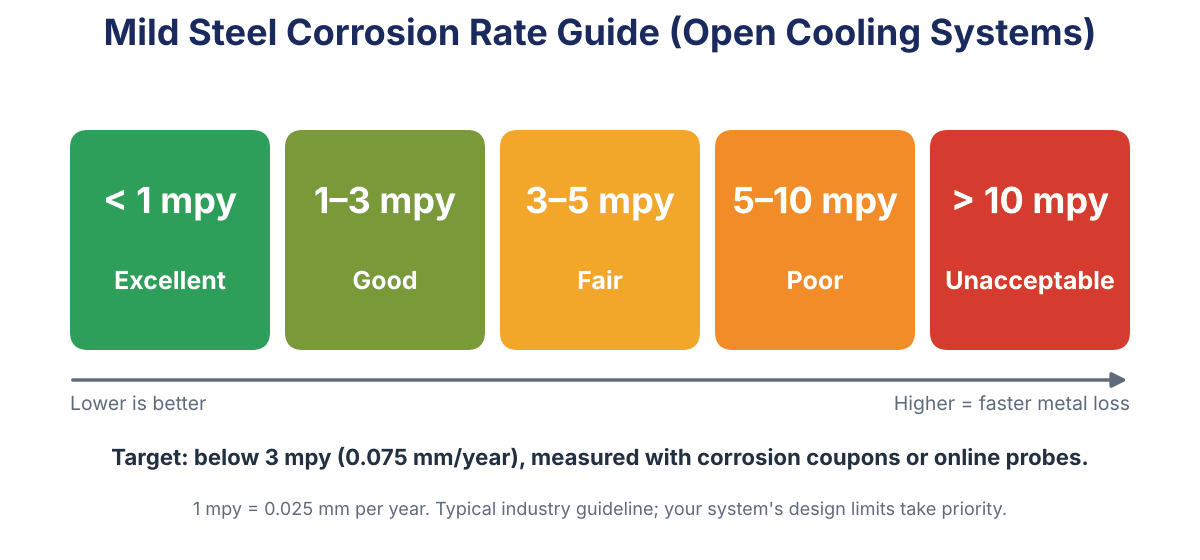

3. Monitor corrosion directly. Install corrosion coupons or online corrosion probes and trend the results. For mild steel in open cooling systems, a corrosion rate below about 3 mpy (0.075 mm/year) is generally considered good.
4. Avoid mixed metals where possible, or isolate them with dielectric fittings.
5. Coat or line exposed surfaces. Epoxy coatings on basins and tank interiors add a durable barrier.
6. Inspect during shutdowns. Check pipes, tube sheets and basins for pitting and tubercles, and act before leaks appear.

Carbon Steel vs. Stainless Steel: Is Upgrading Worth It?

Stainless steel resists general corrosion far better because chromium forms a self-healing oxide layer, but it costs several times more and can still suffer pitting in high-chloride water. For most cooling systems, well-protected carbon steel remains the most economical choice. The key is controlling the water, not replacing the metal.
