Calcium Carbonate (CaCO3) Scale in Heat Exchangers: Causes, Effects and Prevention

Open a fouled chiller condenser or plate heat exchanger in Southeast Asia and you will almost always find the same hard, white-to-brown crust: calcium carbonate (CaCO₃) scale, also known as limescale. It forms quietly, a fraction of a millimetre at a time, but it can raise energy costs by double-digit percentages long before anyone notices a problem.

This guide explains what calcium carbonate is, why it deposits on exactly the surfaces you need to keep clean, what it costs, and the practical strategies that prevent it.

Key Takeaways

• What it is: calcium carbonate is a common mineral found in limestone, chalk and marble. It dissolves into groundwater and arrives in your plant as water hardness.
• Why it forms: heating hard water, losing CO₂ or raising pH makes dissolved calcium and carbonate precipitate as a solid crust.
• Why it hurts: scale insulates heat-transfer surfaces, restricts flow and raises pressure drop, energy use and maintenance cost.
• How to prevent it: monitor water chemistry, control cycles of concentration, and remove hardness before it can deposit, for example with Electrolysis Scale Treatment (EST).

What Is Calcium Carbonate?

Calcium carbonate (CaCO₃) is one of the most abundant minerals on earth. It makes up limestone, chalk, marble, seashells and coral, and it is widely used in construction, paper, plastics, paints and even antacid tablets.

When rainwater containing dissolved CO₂ passes through limestone, it dissolves calcium carbonate as soluble calcium bicarbonate. That is the origin of the hardness in most groundwater and municipal water supplies.

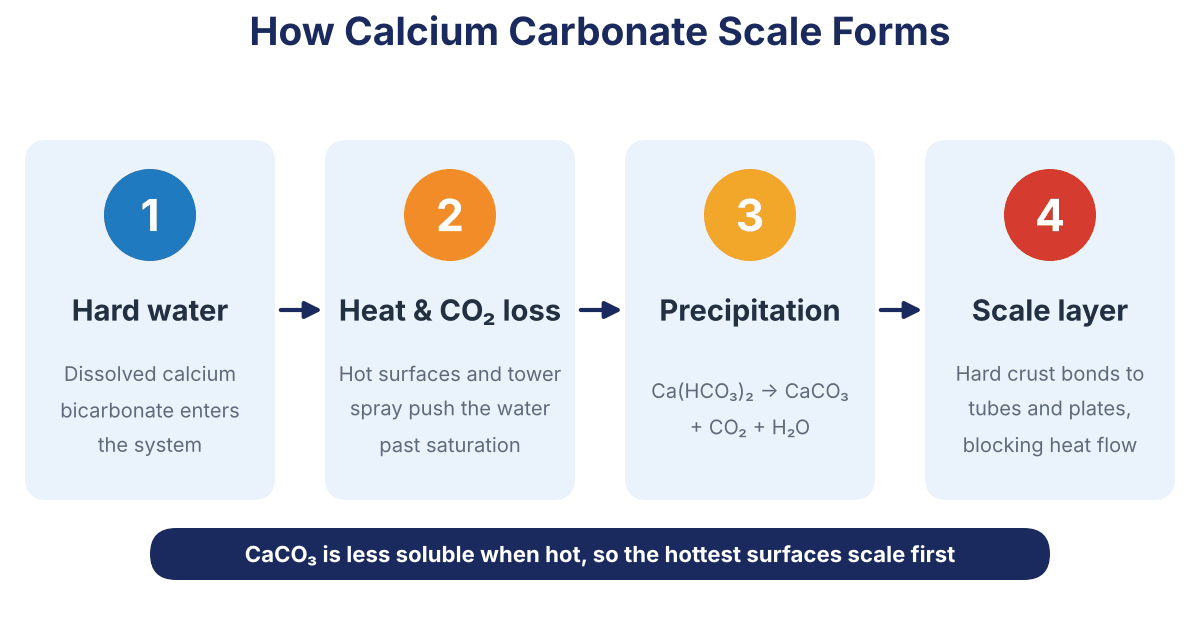

How Calcium Carbonate Scale Forms

Scale forms when dissolved calcium bicarbonate turns back into solid calcium carbonate:

Ca(HCO₃)₂ → CaCO₃ (scale) + CO₂ + H₂O

Three conditions in cooling and heating systems push this reaction forward:

• Heat: unusually, calcium carbonate becomes less soluble as temperature rises. The hottest surfaces, such as condenser tubes and heat-exchanger plates, therefore scale first.
• CO₂ loss: when water is sprayed through a cooling tower, CO₂ escapes to the air, the pH rises and calcium carbonate precipitates.
• Concentration: evaporation concentrates hardness with every cycle. Without enough blowdown or treatment, the water soon exceeds its saturation limit.

The first crystals often form as unstable vaterite, which slowly converts into calcite, a dense and very hard form that bonds strongly to metal. At higher temperatures the aragonite form can also appear. Once a thin layer is established, further scale grows on it more easily.

Why Scale Is So Costly in Heat Exchangers

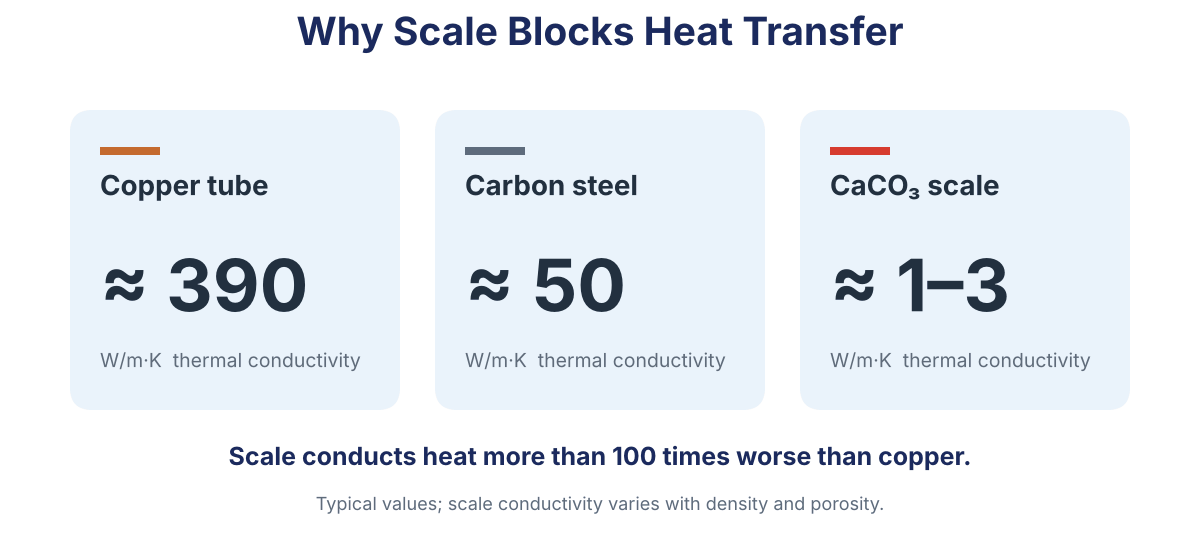

Calcium carbonate scale is an excellent insulator. It conducts heat more than a hundred times worse than the copper used in condenser tubes, so even a thin layer adds significant resistance to heat transfer.

• Higher energy use: around 0.8 mm of CaCO₃ scale can raise chiller energy costs by roughly 10%, and a 1/4-inch (6.35 mm) layer by 40–80%.
• Rising approach temperature: the chiller’s condenser approach climbs, forcing the compressor to work harder for the same cooling.
• Reduced flow and capacity: deposits narrow tubes and plate channels, increase pressure drop and reduce available cooling capacity.
• Under-deposit corrosion: scale traps stagnant water against the metal, creating local corrosion cells and pitting.
• Downtime and cleaning cost: heavy scale must be removed mechanically or with acid, taking equipment out of service.

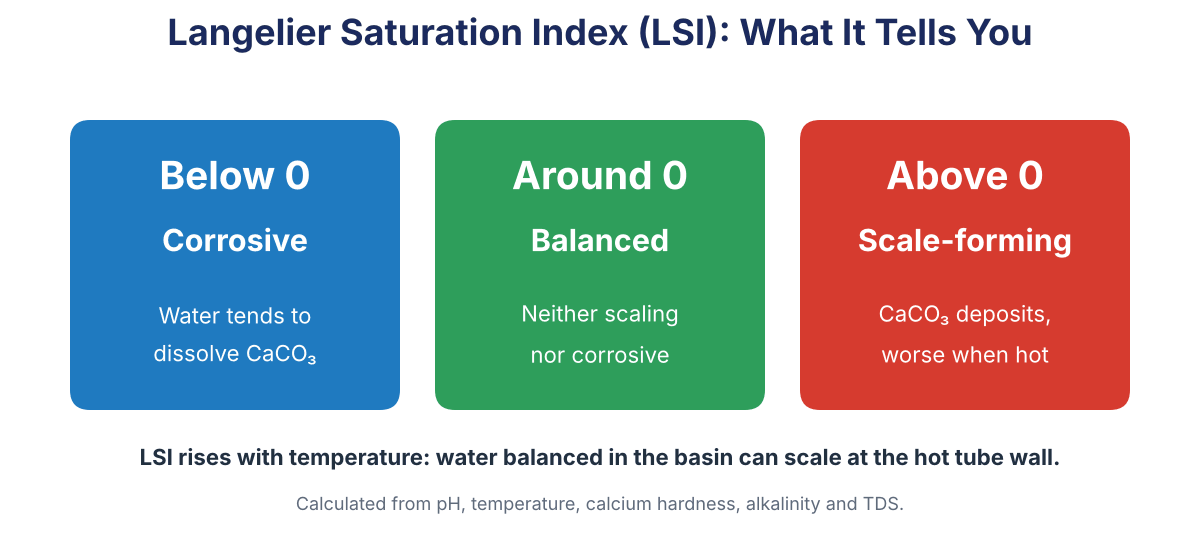

Predicting Scale: The Langelier Saturation Index

Water treatment engineers use the Langelier Saturation Index (LSI) to estimate whether water will deposit or dissolve calcium carbonate. It is calculated from pH, temperature, calcium hardness, alkalinity and total dissolved solids.

• LSI below zero: the water tends to dissolve CaCO₃ and can be corrosive.
• LSI around zero: the water is close to balanced.
• LSI above zero: the water is supersaturated and tends to form scale, more so at higher temperatures.

Because LSI rises with temperature, water that looks balanced in the cooling-tower basin can be strongly scale-forming at the hot condenser tube wall.

Removing Existing Scale

Calcium carbonate dissolves readily in acid, which is why descaling chemicals such as hydrochloric, sulfamic, citric and phosphoric acid are widely used. Acid cleaning works, but it has drawbacks:

• Equipment must usually be taken offline.
• Acids attack metal as well as scale if they are not carefully inhibited, controlled and neutralised.
• Handling and disposal of spent acid adds safety and environmental cost.
• Without prevention, the scale simply returns.

Mechanical cleaning with brushes or high-pressure water is an alternative for tube bundles, but it also requires shutdowns.

How to Prevent Calcium Carbonate Scale

1. Monitor water chemistry. Track hardness, alkalinity, pH, conductivity and LSI regularly, not only after problems appear.
2. Control cycles of concentration. Set blowdown so dissolved minerals stay below their scaling limit.
3. Remove hardness before it can deposit. Electrolysis Scale Treatment (EST) precipitates calcium carbonate inside a dedicated reactor instead of on heat-exchanger surfaces, then removes it from the system automatically, without scale-inhibitor chemicals.
4. Keep velocity and temperature in design range. Low flow and hot spots accelerate deposition.
5. Trend performance. Watch condenser approach temperature and pressure drop; a steady rise is often the first sign of scale.
6. Inspect and clean on condition. Use inspection data, not the calendar, to decide when cleaning is needed.
